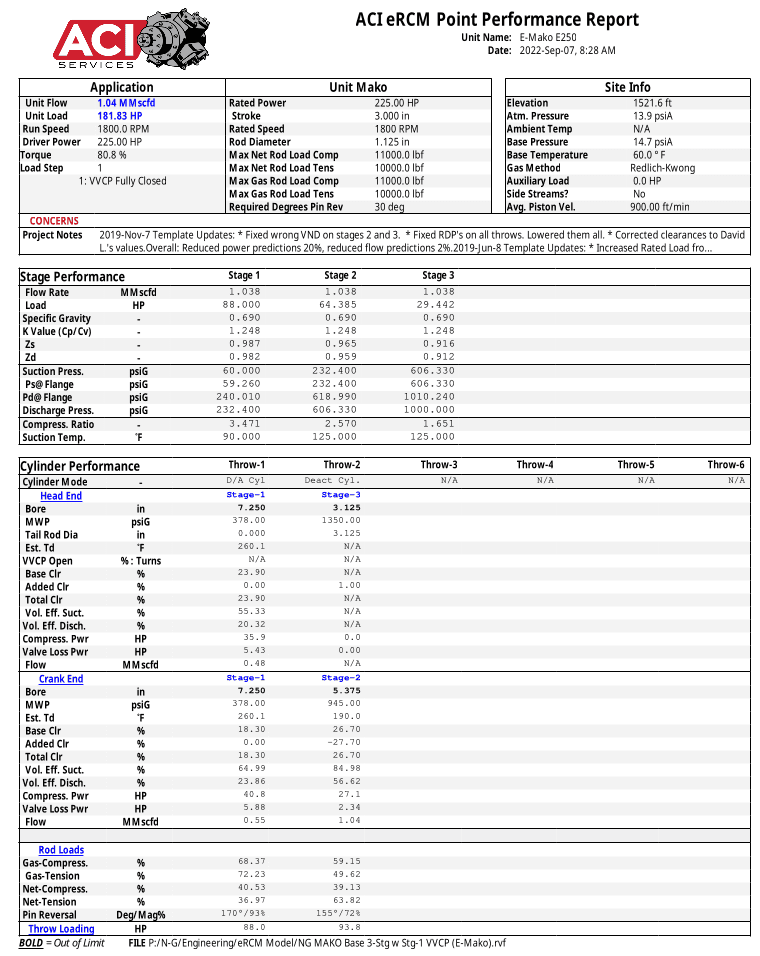

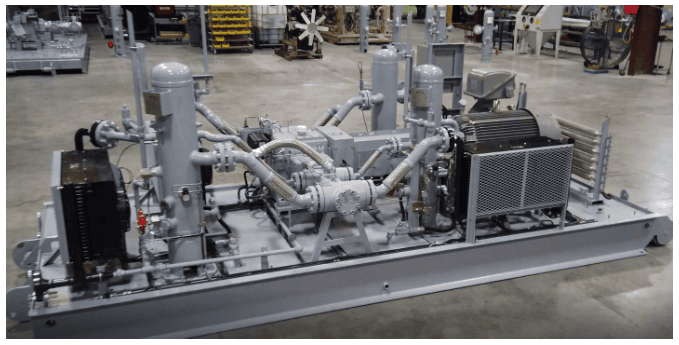

Compressor:

• NG MAKO 225 (2 throw, 3 stage)

• 3” Stroke 21,000 lb. combined rod load

• 7.250” D.A. Cylinder MWP 420 psig

• 5.375” S.A.H.E. Cylinder MWP 1050 psig

• 3.125” S.A.C.E. Cylinder MWP 1500 psig

Coolers - Fresco AC225

• Air-cooled, forced draft, electric fan powered via alternator

• Programmable individual interstage temperature control

• Finned Tube type high efficiency

• Designed for 105F Ambient & <20°F approach

• B31.3 process gas sections

• 1st Stage Intercooler section rated @ 1440 psig @ 350 F

• 2nd Stage Intercooler section rated @ 1440 psig @ 350 F

• After cooler section rated @ 1440 psig @ 350 F

Vessels:

• Suction: Vertical 10” OD 425 psig MAWP @ 150 oF

• 1st Interstage: Vertical 10_ OD 425 psig MAWP @ 150ºF

• 2nd Interstage: Vertical 10” OD 900 psig MAWP @ 150ºF

• Designed to ASME Section VIII, Division I Code Stamp with National Board Registration.

• Hydro tested to 1.3 times MAWP

• Automatic liquid level control system

• High level shutdown

• Manual drain valve

Safety:

• Process safety valves (PSV) sized for max flow at design

pressures.

• PSV relief piping to atmosphere above head height

• Package Inlet PSV connection provided. PSV by others

• 1st Interstage PSV set @ 425 psig

• 2nd Interstage PSV set @ 900 psig

• 3rd Interstage PSV set @ 1440 psig

Motor:

• Rated at 250HP

• 1300-1800 RPM

• Full Speed @ 60Hz

• 90% Load Estimates Monthly 133,245 KWH

• TECO Westinghouse C1D2 Housing

Process Gas Piping:

• Made to ANSI B 31.3

• Manual cold gas recycle valve

• Stainless-steel braided flexible piping for process gas

Control Panel:

• Murphy GEN 1 Control System Evolution control panel

• Remote monitoring standard through M-Link Standard

• Shock mounted inner panel

• Shutdown interlocks and sensors:

• Compressor:

o High/low suction pressure

o High/low interstage pressures (1st & 2nd)

o High/low discharge pressure

o High discharge temperature each stage

o Compressor low lube oil pressure

o Compressor no lube oil flow

o Compressor low lube oil level

o High scrubber liquid level

o One spare set of contacts with terminal plug

• Motor:

o Motor Windings RTDs

o Motor Vibration Accelerometer

o Engine high lube oil temperature

o Engine high jacket water temperature

• 7’8” X 18’6” Structural steel skid, partially concrete filled
• One-piece smooth steel deck plate
• All piping mounted on stand-offs for ease of cleaning

• Environmental rails around perimeter coming to four drain points
